Power Meets Precision: The Kinetic V Series

Next-generation variable frequency DC water pumps for commercial and professional aquatic systems.

Trade Application

"Designed specifically for the demanding environment of professional koi pond filtration, the Kinetic V-Series prioritizes reliability, controllability, and efficiency"

  • Smart On-Board Diagnostics

    Eliminate the guesswork of pond maintenance. The digital controller features an active monitoring system that instantly detects running issues. If a fault occurs, the system safely shuts down and displays a precise diagnostic code on the screen—alerting you instantly to dry-running, impeller blockages, or loose connections.

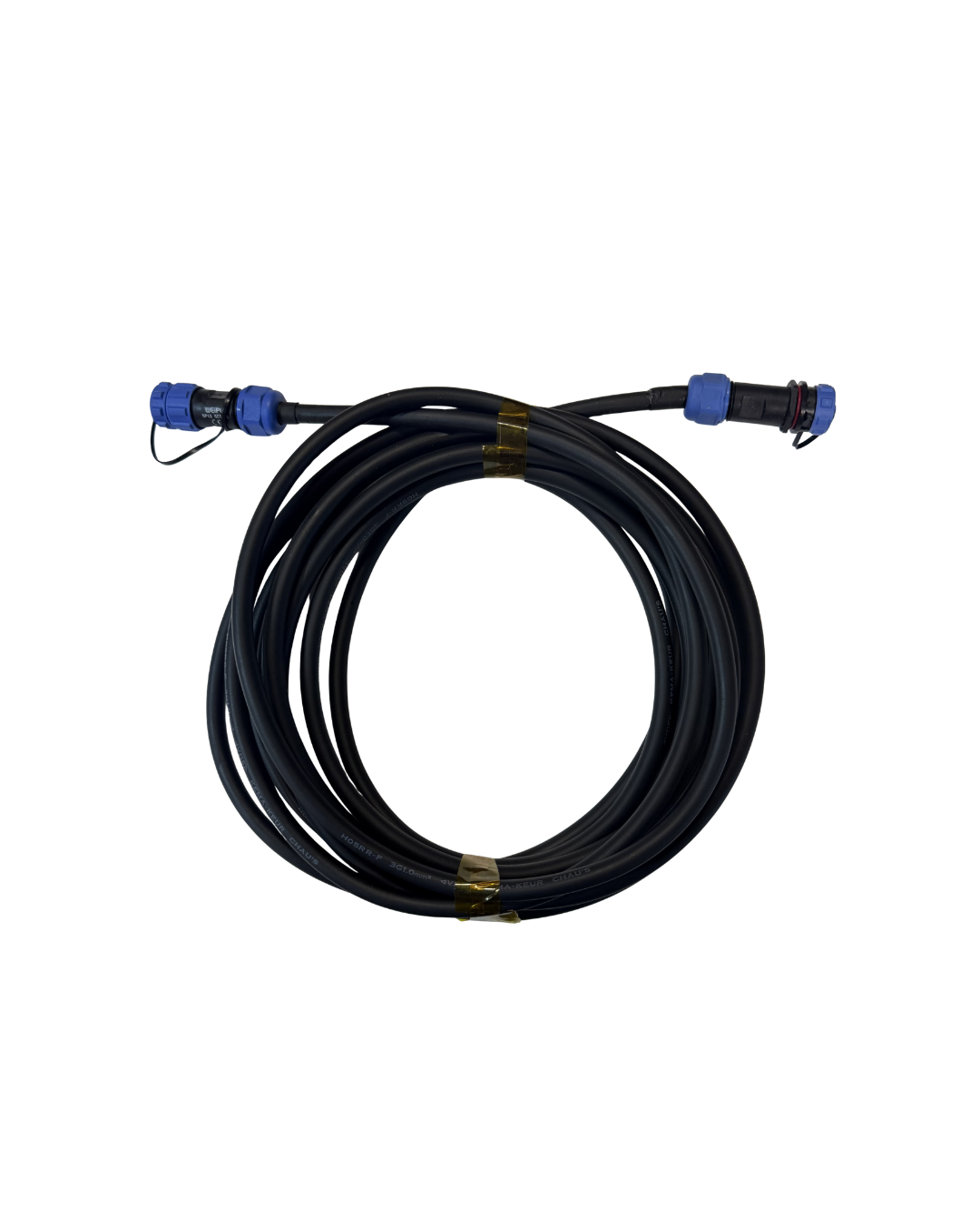

  • Adaptive Cable Length

    Every pond setup is unique. That is why the Kinetic ships with an adaptive cable system. Keep your dry-inline installations neat and tidy with the factory 3m lead. For deeper, submerged applications, connect the included 5m extension using the heavy-duty SP13 aviation connector for a full 8 meters of flexible reach.

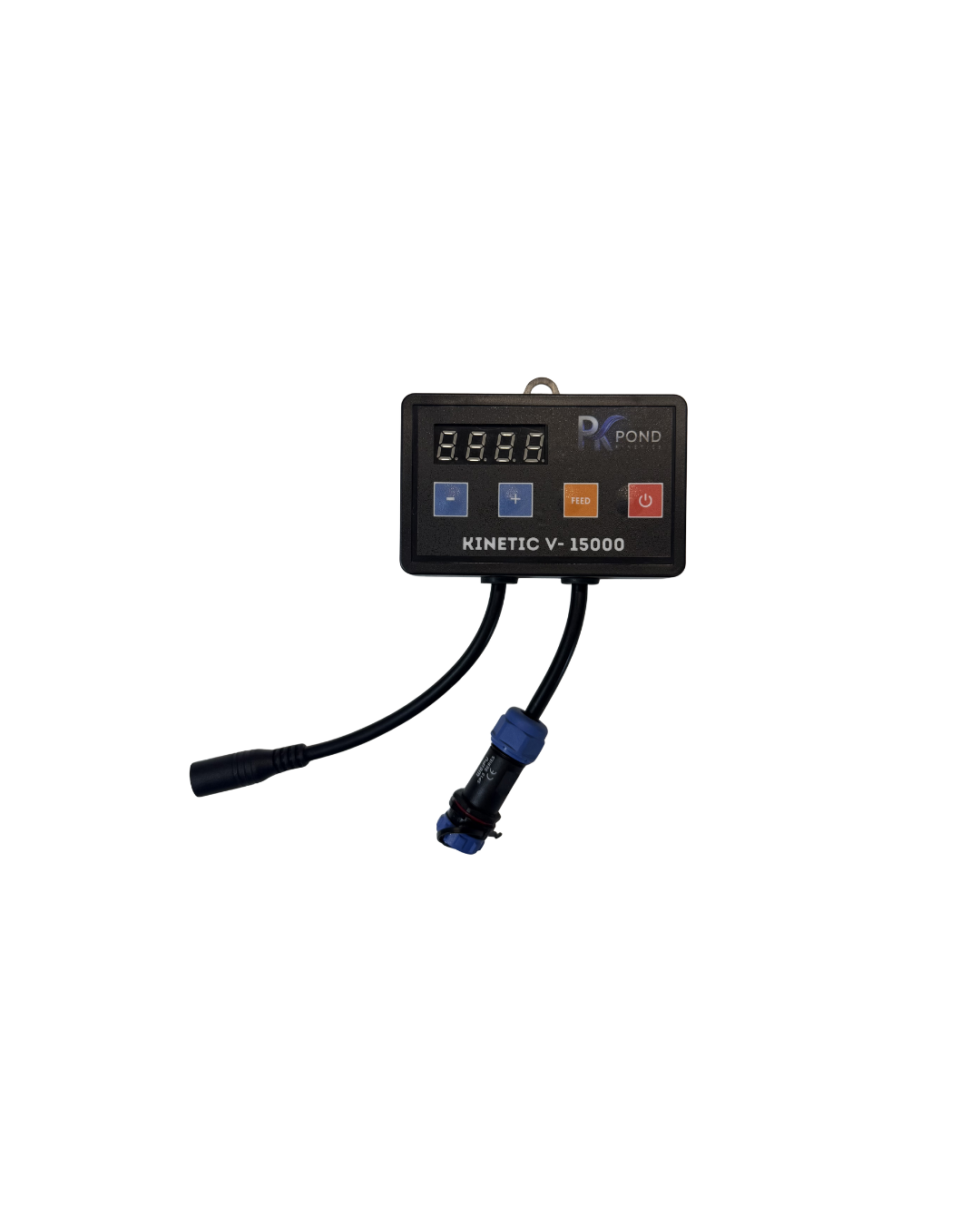

  • Smart-Step Precision Control

    Eliminate the need for energy-wasting mechanical ball valves to choke flow. The included digital controller features individual distinct speed settings, allowing installers to tune the water turnover perfectly for specialized biological filters, UV clarifiers, or to set the ideal aesthetic for waterfalls.

  • Intelligent "Feed Mode"

    Simplified maintenance and feeding. A single press of the dedicated button pauses pump operation for exactly 10 minutes. This prevents expensive koi food from being drawn into the skimmer or mechanical filtration before the fish can feed. The pump automatically resumes its programmed speed after the countdown.

  • Plug-and-Play Industrial Power (No Special Wiring)

    There is no need for complex wiring or electrician installations. Simply plug the unit directly into a standard 240V mains outlet just like a traditional water pump. Every Kinetic V-Series pump ships standard with a high-specification, industrial-grade power supply that automatically handles the conversion, ensuring stable, ripple-free 24-volt delivery to the DC motor for continuous 24/7 operation.

  • Low-Voltage Safety

    By stepping the voltage down from standard mains (240V) to a safe 24V or 36V DC before it ever reaches the pond, safety is maximized for both the valued koi collection and the owners during routine maintenance.

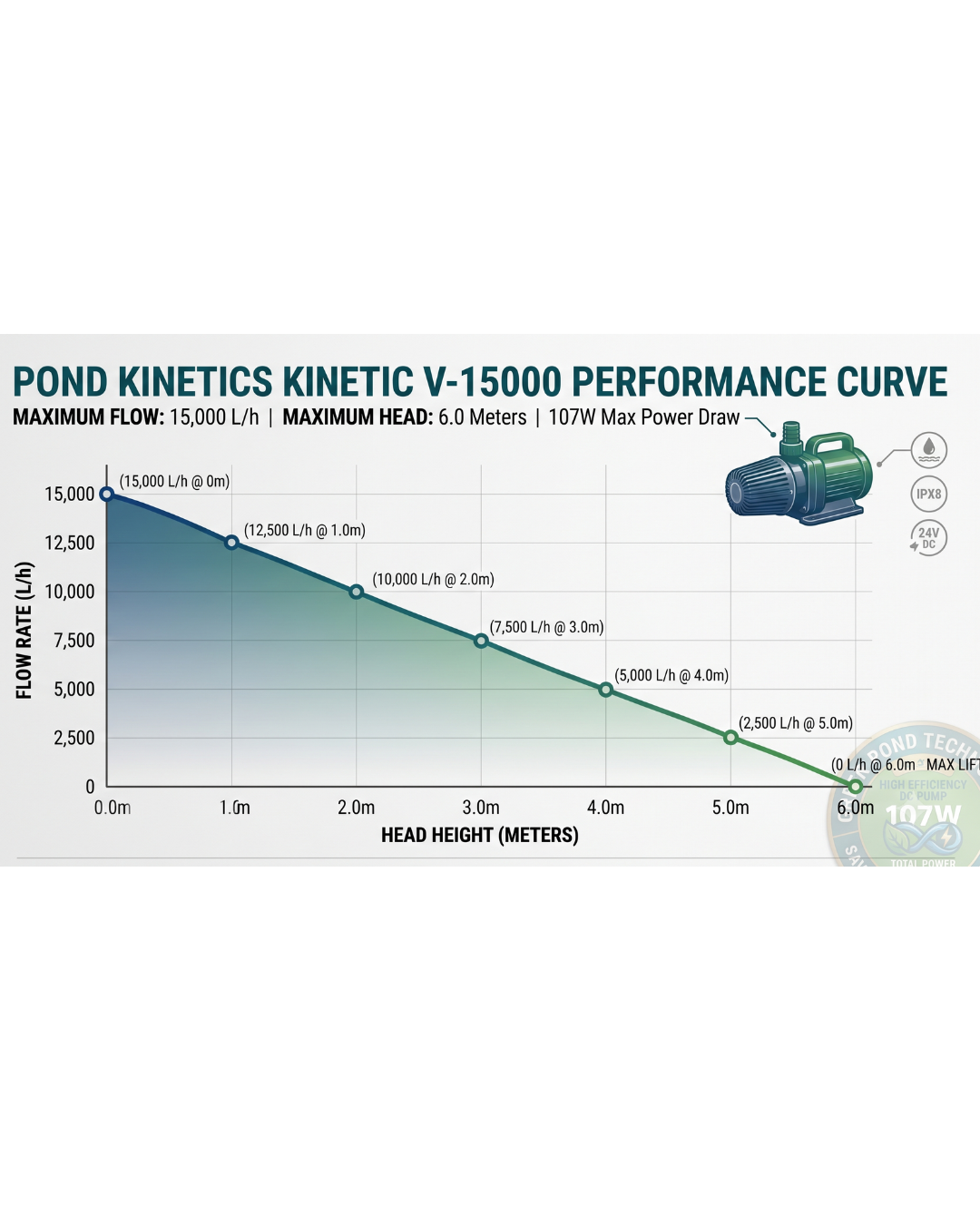

Kinetic V Series Specifications

Feature Kinetic V-15000 Kinetic V-20000
Max Flow Rate 15,000 L/H 20,000 L/H
Max Head Lift 6 m 7.0 m
Max Power 110 W 180 W
Voltage DC 24V DC 36V
Controller Yes (Variable) Yes (Variable)
Application Ponds & Sumps Commercial & Larger Ponds

Why Upgrade to Sine Wave Technology?

When advising your clients on filtration upgrades, understanding the "Sine Wave" advantage is key to justifying the premium performance investment.

  • Whisper-Quiet Operation: Traditional "square wave" pumps cause motor resonance and a low-frequency mechanical hum. Sine wave technology delivers the electrical signal in a smooth, continuous curve, eliminating motor resonance and vibration. The pump is virtually silent—clients hear the water, not the hardware.

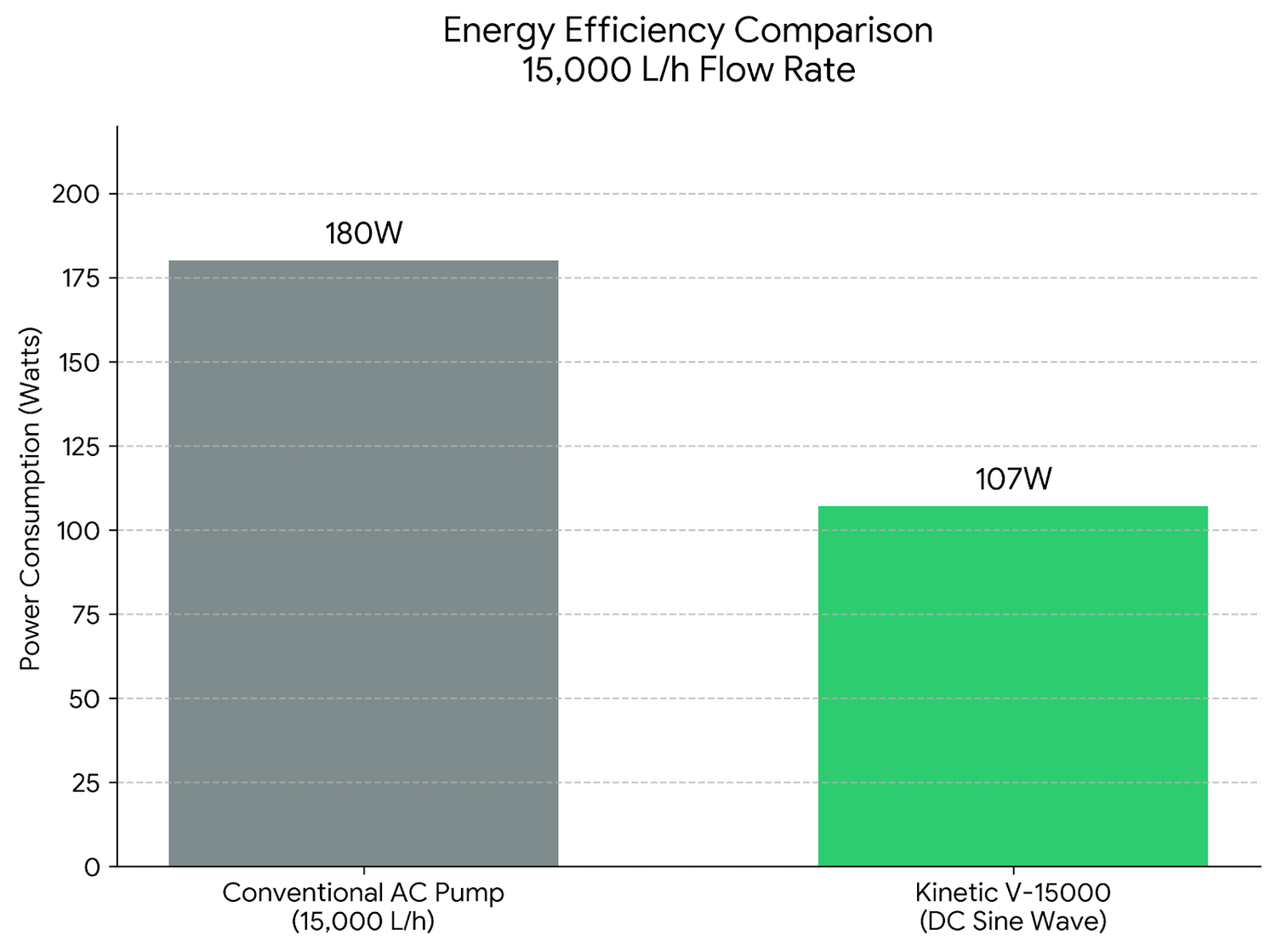

  • Unmatched Energy Efficiency: Kinetic V-Series DC motors are significantly more efficient than traditional AC pumps, converting more energy into water movement rather than waste heat. When combined with the ability to tune the pump down via the 20-step controller, users save substantial amounts on electricity, often allowing the pump to pay for itself in under two years.

  • Extended Motor Lifespan: The smoother rotational force provided by a sine wave drive puts significantly less physical stress on the ceramic shaft and bearings. This reduces internal wear and tear, leading to a much longer operational life.

The Pond Sentry Ecosystem (Integration Ready)

Designed for Standalone Excellence.

Built for Future Integration.

While the Kinetic V-Series operates flawlessly as a standalone unit with the supplied controller, it is designed for the future of pond automation.

This pump is fully compatible with our upcoming Pond Sentry system. Currently in final development, the Pond Sentry will act as the "central brain" for your entire aquatic setup. Once released, professionals can easily link Kinetic V-Series pumps—and other compatible Pond Kinetics products—directly to the Sentry for advanced synchronized control, remote monitoring, and complex automation sequences via a single hub.

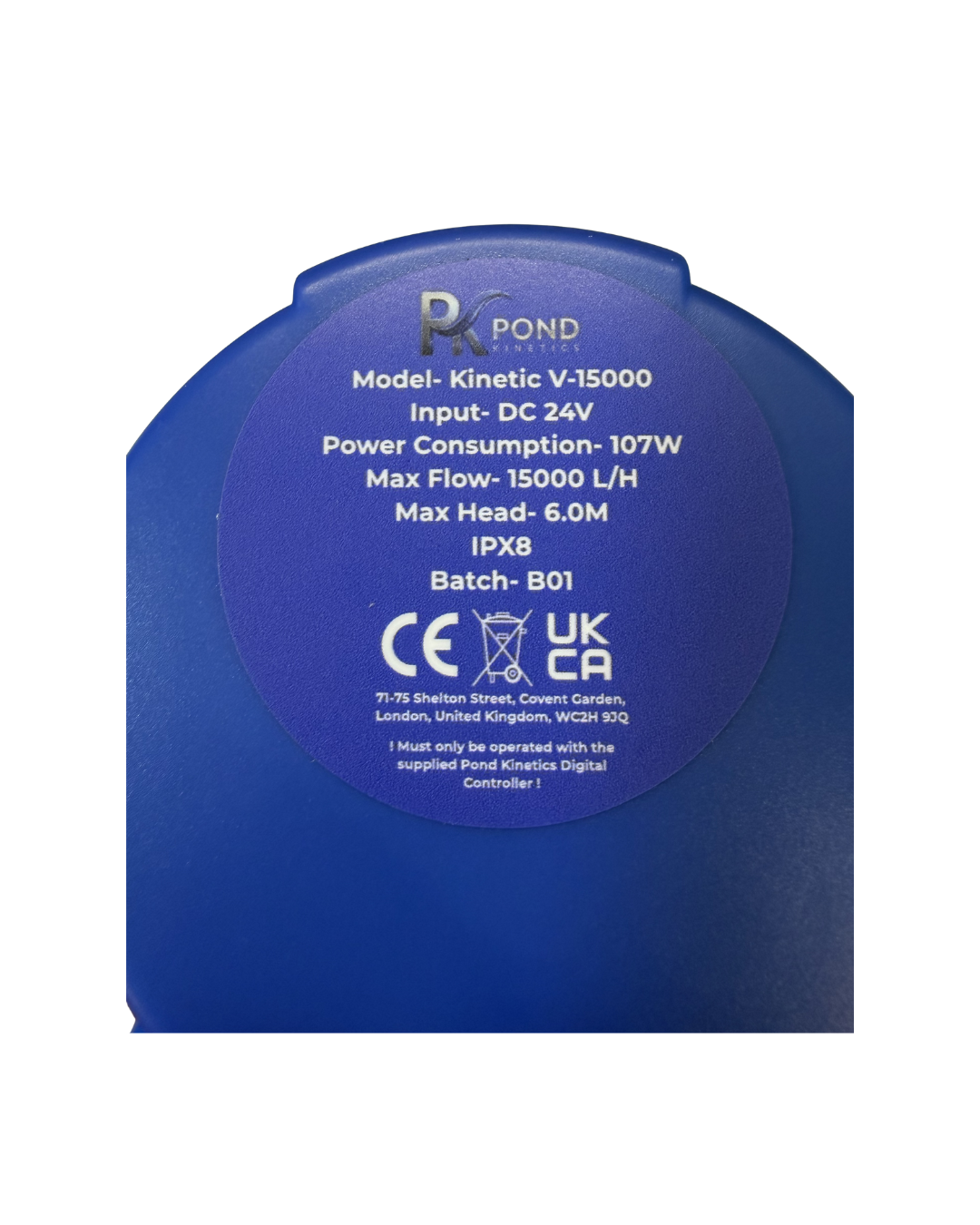

Technical Specifications (V-Series)

Operating Voltage: 24V DC (Low-Voltage Safe)

Main Power Input: Standard 240V Mains Plug (Converts to 24V DC via included power supply)

Power Supply Unit (PSU): Heavy-Duty Industrial Grade

Controller: Digital, Smart-Step Variable Speed

Technology: Advanced Sine Wave Drive

Application: Submersible or Inline (Dry install)

Protection Ratings: Dry-Run Protection, Thermal Protection, Current Surge Protection.

What’s Included in the Box

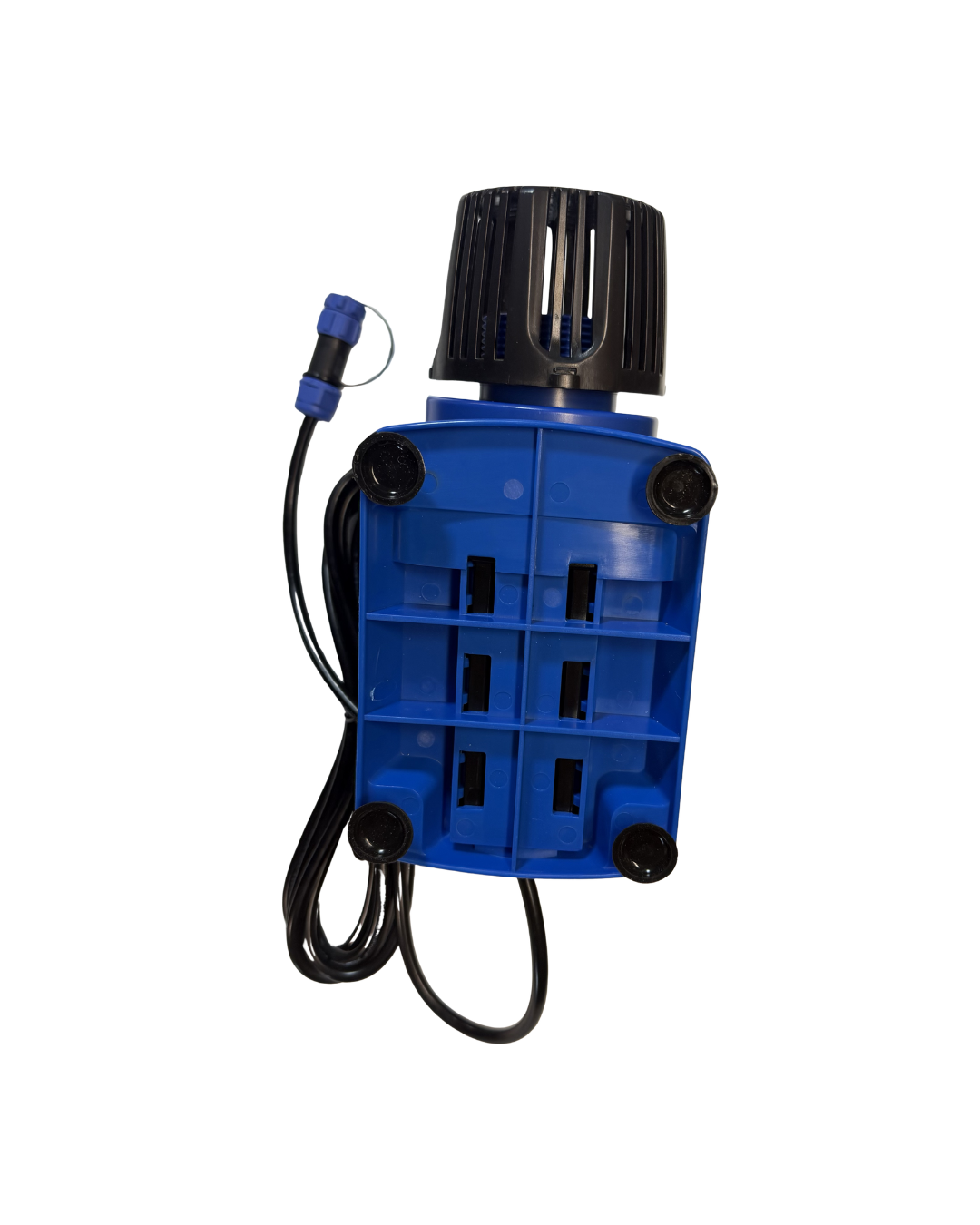

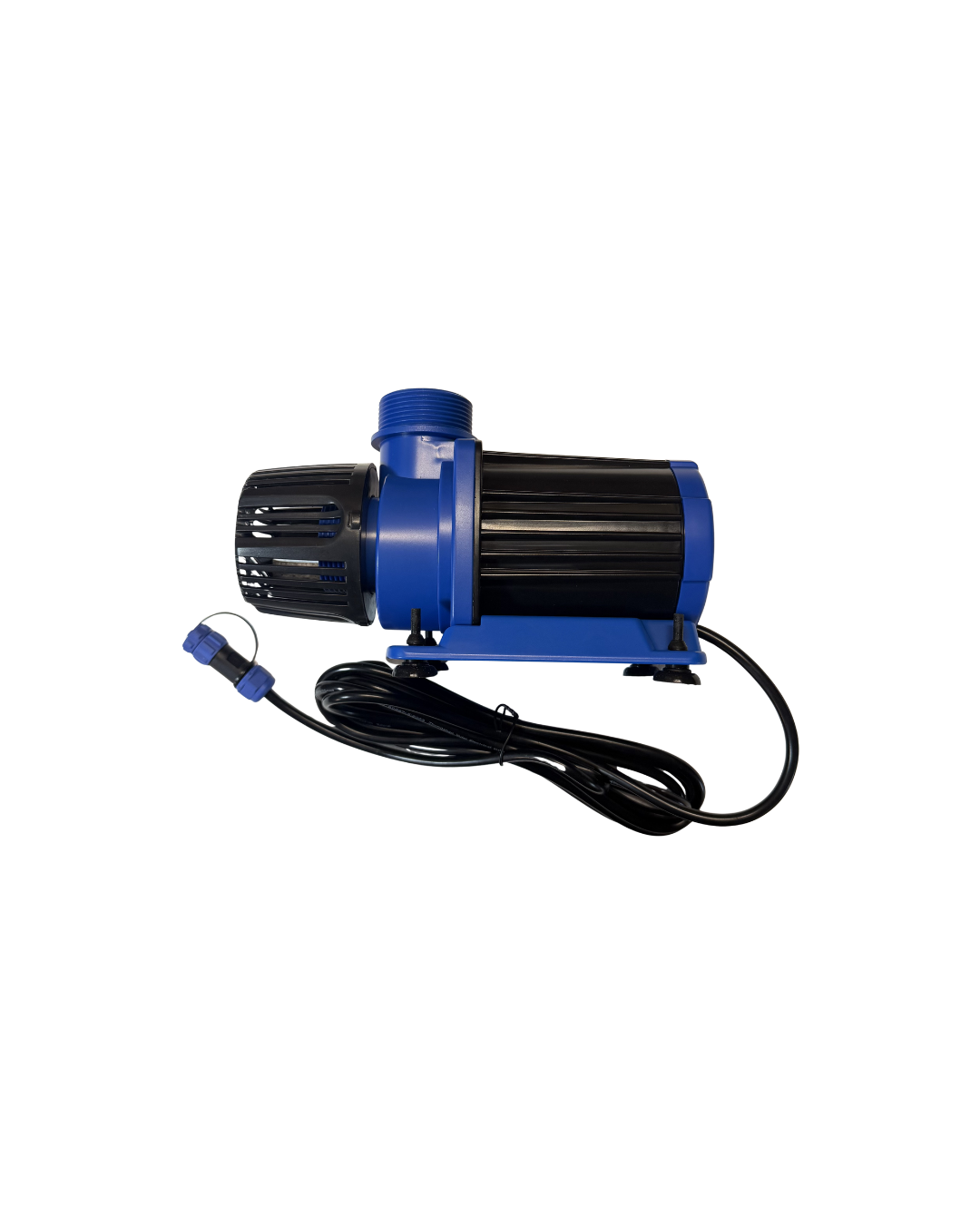

1x Kinetic V-15000 Pump (with 1 x protective intake cage)

1x Smart-Step Digital Smart Controller

1x Industrial-Grade Power Supply (with standard 240V mains plug)

Assorted Step-Down Fittings and O-Rings

Quick Start Guide
